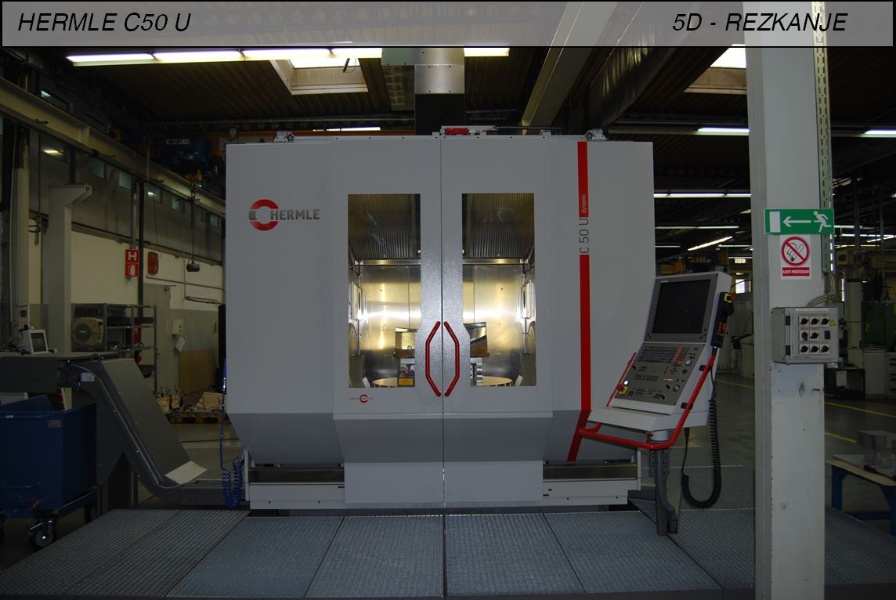

5D CNC milling machine, Hermle C50

Type 5D CNC milling machine
Model HERMLE C50, 2012
Manufacturer HERMLE
Year of manufacture 2012

Characteristics - 5D CNC milling machine

Working area, x - y - z (mm) 1000 x 1100 x 700
Simultaneous 5 axis milling f1150 x 810 no limitation on the A and C axes
Dimensions of the machine (mm) 7160 x 6510 x 4130
Table size (mm)

f1150 x 900 option, rotation divider:+100°, -130° (A axis ... 20min-1), rotation the table: 360° (C axis ... 30min-1)

Table load capacity  (kg) 2000
Spindle Motor power

17 kw /39kw (40% ED), Moment:108Nm / 240Nm, Clamping: HSK A63, Torque: 20 - 18000 min-1

Feed rate Fast feed: 60m/min, Acceleration 6m/s2
Measuring System Linear position sensor, repeatability  0.008

Magazine tools

60 storage spaces
Product weight

21.500 kg, machine construction of modular cast iron

Cooling

Cooling through jets of air and water;  Cooling through spindle of air

Controller Heidenhain iTNC530
