| Type |

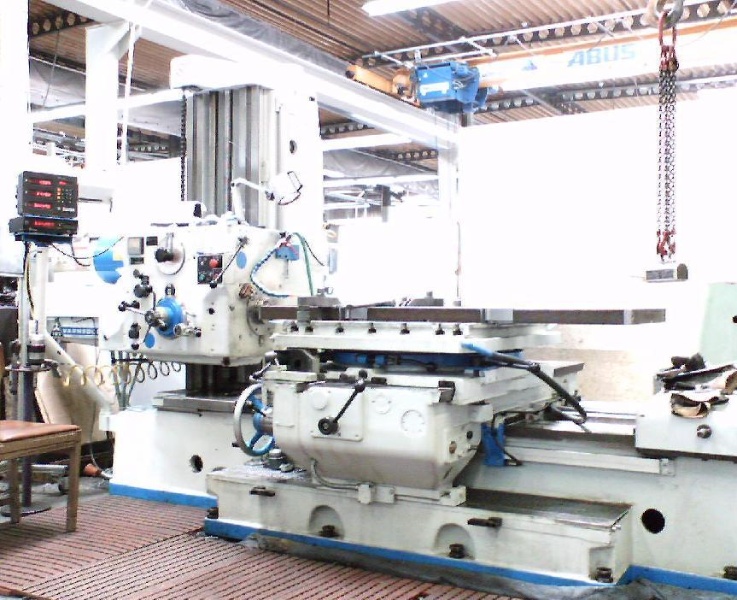

Milling Machine - Horizontal |
| Model |
WH63 |
| Manufacturer |
TOS KURIM |
| Year of Manufacture |
1968 |
|
|
|
Specifications - Milling Machine - Horizontal
| Working area (mm) |
700 x 650 x 600 |
| Motor power (kW) |
7.3 |
| Spindle speed (min-1) |
18 - 1800 |
| Feed rate (mm/min) |
36 - 1411 |
| Table load capacity (kg) |
2000 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.03 mm, read-out: digital, barrel diameter: 63 mm, max. barrel stroke up to 500 mm - functional up to 400 mm, machine is used for long boreholes drilling, boreholes turning from 15 mm to 150 mm in diameter, angular milling option, not suitable for rough machining, rotary table, option of working on square. |
