| Type |

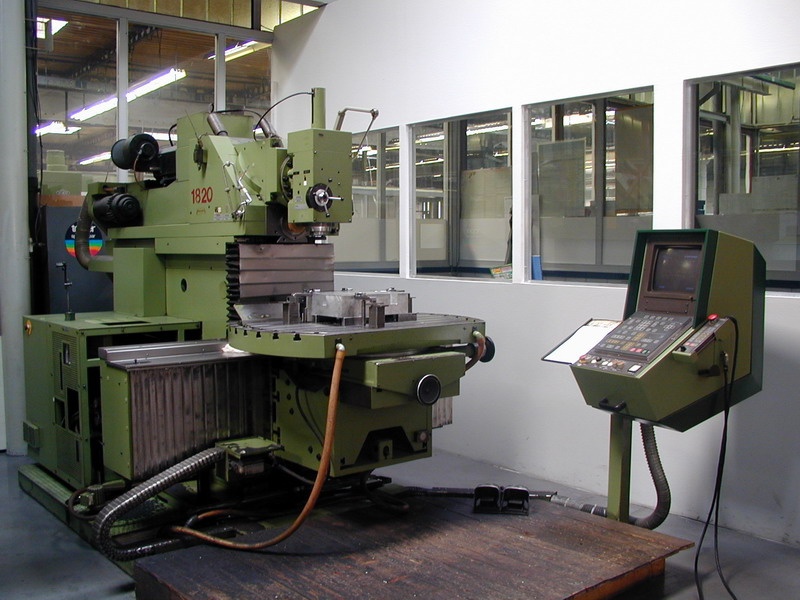

3-axis CNC Machine |
| Model |
1000 |
| Manufacturer |
MAHO |
| Year of Manufacture |
1988 |
|
|
|
Specifications - CNC Milling Machine
| Working area (mm) |
1000 x 800 x 600 |
| Motor power (kW) |
6.3 |
| Spindle speed (min-1) |
20 - 2000 |
| Feed rate (mm/min) |
1 - 400 ...stroke |
| Table load capacity (kg) |
800 |
| Controller |
8bit, 200kb, 256kb ram |
Other Characteristics
3-axis CNC milling machine
Accuracy 0.01 mm, table inclination in two axes up to 30°, head inclination up to 45°, clamping in vice up to 300 mm, 30 mm and larger diameter boreholes shall be predrilled with machining allowance 3 - 4 mm. Seat milling with milling cutter, diameter 5, up to 10 mm deep, with milling cutter, diameter 10, up to 20 mm deep. |
