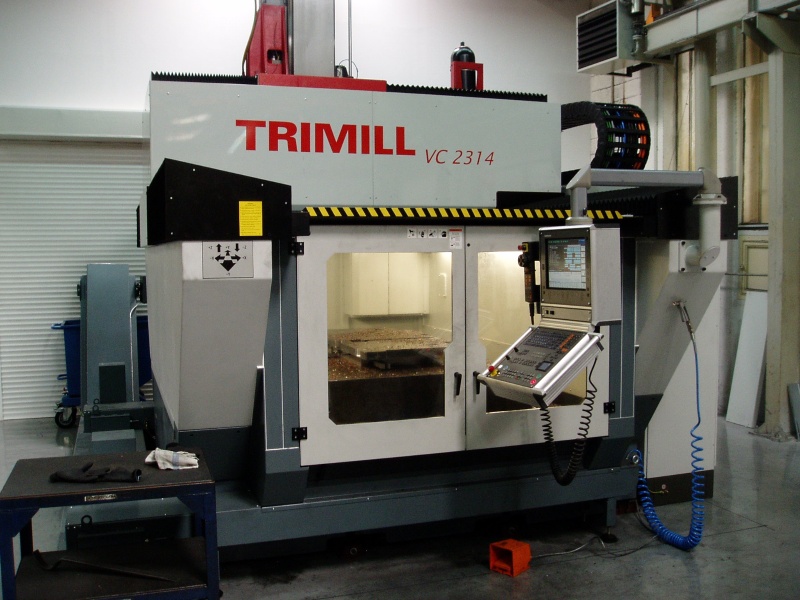

3-axis CNC Machine, TRIMILL VC2314

Type: 3-axis CNC Machine
Model TRIMILL VC2314, 2011
Manufacturer TRIMILL
Year of manufacture 2011

Specifications - CNC vertical machining centre

Precision 0.01 mm / 1500 mm
Working area (mm) 2300 x 1400 x 800
Table (mm) 2500 x 1900
Door width (mm) 1630
Motor power (kw) 25

Spindle speed(min-1)

 14000
Feed rate (mm/min) 1 - 30000
Table load capacity (kg)

3200 kg

18000
Controller Heidenhain iTNC530

Ostale karakteristike

*... Angle head... is a tool for milling deep grooves with small radius
