| Type |

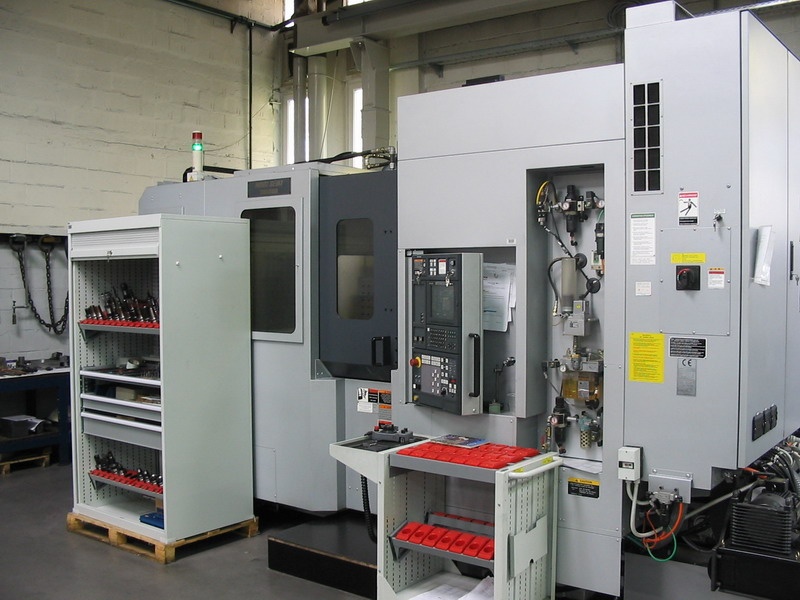

4-axis CNC Machining Centre |
| Model |
SH5000 |
| Manufacturer |
MORI SEIKI |
| Year of Manufacture |
2003 |
|
|
|
Specifications - CNC Horizontal Machining Centre
| Working area (mm) |
800 x 700 x 700 |
| Motor power (kW) |
22 |
| Max. workpiece diameter (mm) |
diameter 800 x height 900 |
| Spindle speed (min-1) |
12.000 |
| Feed rate (mm/min) |
0 – 1,260mm/m . manual feeding |
| |
50 ... high speed stroke |
| Table capacity (kg) |
500 (rotatable) |
| Controller |
FANUC |
Other Characteristics
Acceleration 0-12.000 rev. in 1.7/1.3 sec, tool shank BT40, 40 tool magazine for automatic too changing, cooling through spindle, positioning accuracy +/- 0.005, repeatability accuracy +/- 0.001, two exchangeable pallets 1x(500 x 800 mm) 1x(500x500 mm). |
