| Type |

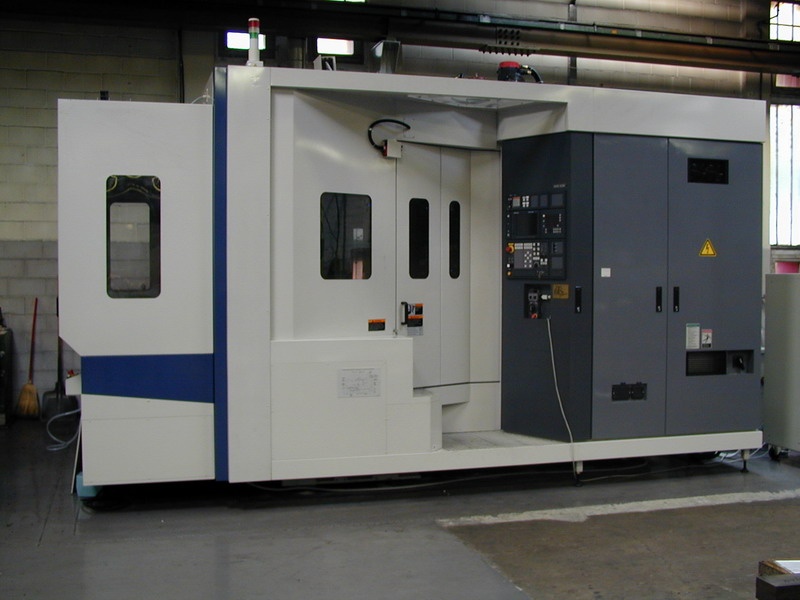

4-axis CNC Machining Centre |
| Model |
MH-630 |
| Manufacturer |
MORI SEIKI |
| Year of Manufacture |
1999 |
|
|
|
Specifications - CNC Horizontal Machining Centre
| Working area (mm) |
1000 x 1050 x 920 |
| Motor power (kW) |
25 (22) |
| Spindle speed (min-1) |
60 – 6.000 |
| Feed rate (mm/min) |
1 – 5.000 ... stroke |
| |
20.000 ... high speed stroke |
| Table load capacity (kg) |
1.500 |
| Controller |
FANUC |
Other Characteristics
Moment 420 Nm, tool shank BT50, 60 tool magazine for automatic tool changing, positioning accuracy +/- 0.005, repeatability accuracy +/- 0.001, two exchangeable pallets (800 x 800 mm). |
