| Type |

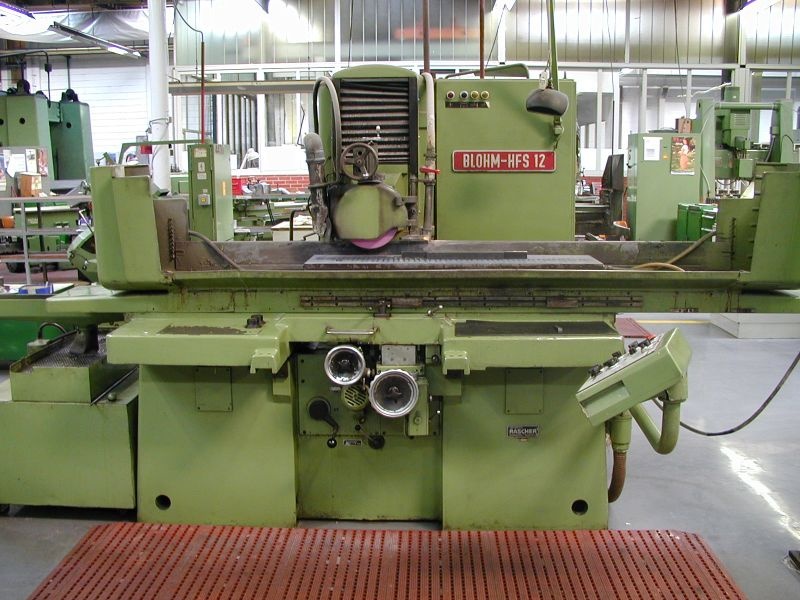

Plane Grinding Machine |
| Model |
HFS 12 |
| Manufacturer |
BLOHM |
| Year of Manufacture |
1969 |
|
|
|
Specifications - Grinding Machine
| Working area (mm) |
1800 x 300 x 350 |
| Motor power (kW) |
5.5 |
| Spindle speed (min-1) |
1400 - 2800 |
| Feed rate |
2 - 65 mm/stroke ... transversal
2 - 30 m/min ... longitudinal |
| Table capacity (kg) |
400 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.02 mm, read-out: standard, grinding wheel dimensions: 300 x 50 x 127, magnet size 1200 x 300, magnet mass: 75 kg |
