| Type |

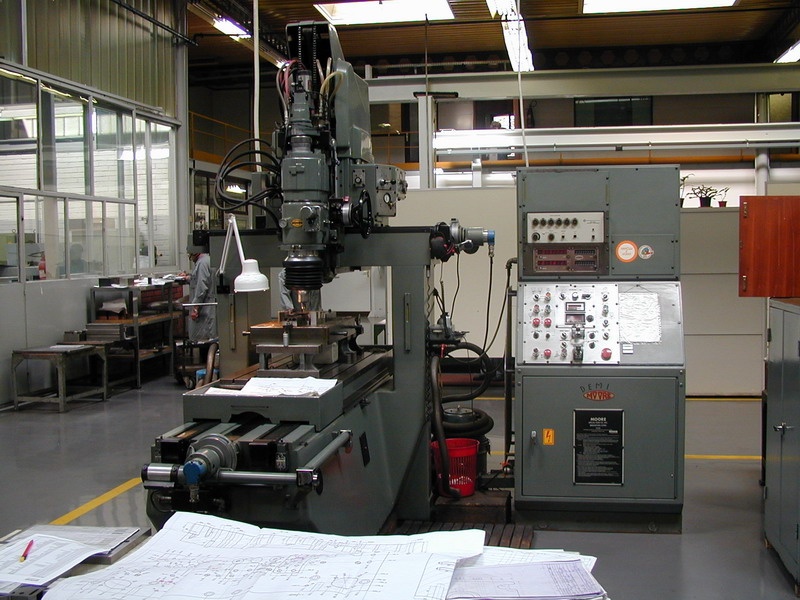

Coordinate Grinding Machine |
| Model |
MOORE |
| Manufacturer |
MOORE |
| Year of Manufacture |
1981 |
|
|
|
Coordinate Grinding Machine
| Working area (mm) |
600 x 1000 x 500 |
| Motors in x - y plane (kW) |
0.5 |
| Drive in z axis - air (bar) |
8 |
| Spindle speed (min-1) |
5 - 100 ... spindle
5 - 9000 ... at grinder diameter (19 - 50 mm)
5 - 40000 ... at grinder diameter (10 - 19 mm)
5 - 60000 ... at grinder diameter (5 - 10 mm) |
| Feed rate (mm/rev) |
2 |
| Table load capacity (kg) |
1000 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.003 mm, read-out: digital, suitable also for various measurements, coordinate grinding of boreholes from diameter 1 to radius 350, grinding of rectangular openings in dies from 25 x 25 on, equipment includes dividing head (division in seconds) and grinding wheel profiling unit, a relief for tool running out shall be performed at the bottom for blind boreholes grinding, bottom levelling is not recommended and is not performed by the machine. |
