| Type |

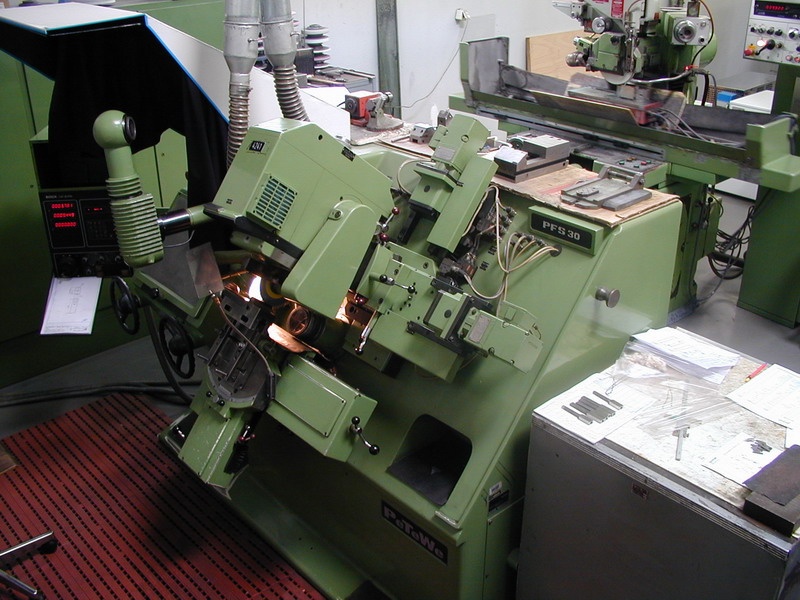

Profile Grinding Machine |
| Model |
PFS 30 |
| Manufacturer |
PeTeWe |
| Year of Manufacture |
1987 |
|
|
|
Specifications - Grinding Machine
| Working area (mm) |
height x length x depth 80 x 110 x 55 |
| Motor power (kW) |
0.5 |
| Spindle speed (min-1) |
5000 |
| Feed rate (stroke/min) |
150 |
| Table load capacity (kg) |
20 |
| Controller |
BOSCH |
Other Characteristics
Accuracy: 0.005 mm, read-out: CNC, grinding acc. to template 1:10 , 1:20 or 1:50, rough grinding, workpiece materials: hard metal, Ferrotic, tool steel; equipment includes two units for radius profiling on grinding wheels, clamping unit for round workpieces between tips, i.e.: diameter up to 150 mm and length from 70 to 115 mm. |
