| Type |

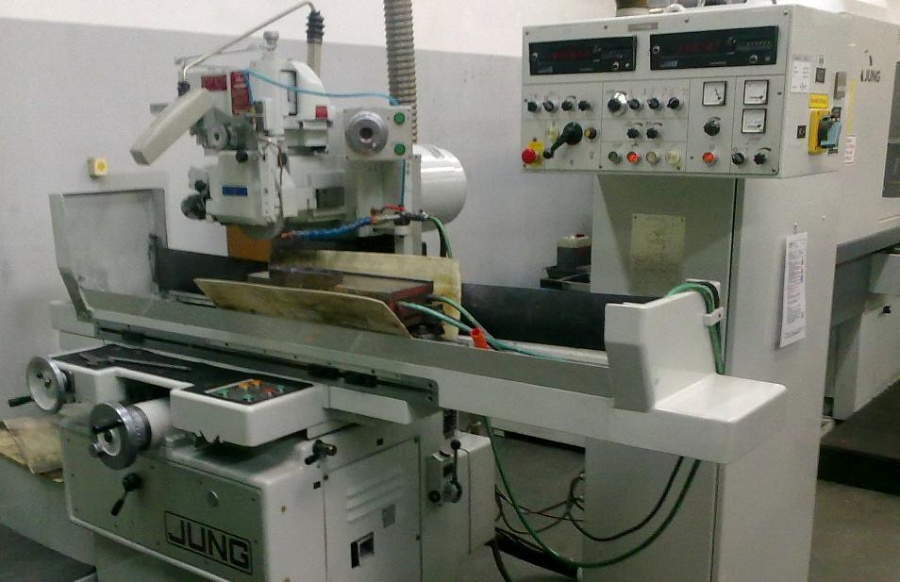

Profile Grinding Machine |
| Model |
JF 520 |
| Manufacturer |
JUNG |
| Year of Manufacture |
1979 |
|
|
|
Specifications - Grinding Machine
| Working area (mm) |
550 x 200 x 250 |
| Motor power (kW) |
5 |
| Spindle speed (min-1) |
4200 |
| Max. diameter and width of grinding wheel (mm) |
diameter 250 x 30 |
| Table load capacity (kg) |
50 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.01 mm, read-out: digital, grinding of various forms, radii, etc., equipment includes grinding wheel profiling device acc. to template. The scale of the template shall be 10:1, equipment includes also a dividing head for direct partition for grinding between tips (dividing head enables clamping up to 12 mm in diameter), vice, sine-table for free angles grinding, diamond grinding wheel for flat surfaces machining, template shall be cut by wire erosion of Al sheet-metal, 2-2.5 mm thick. |
