| Type |

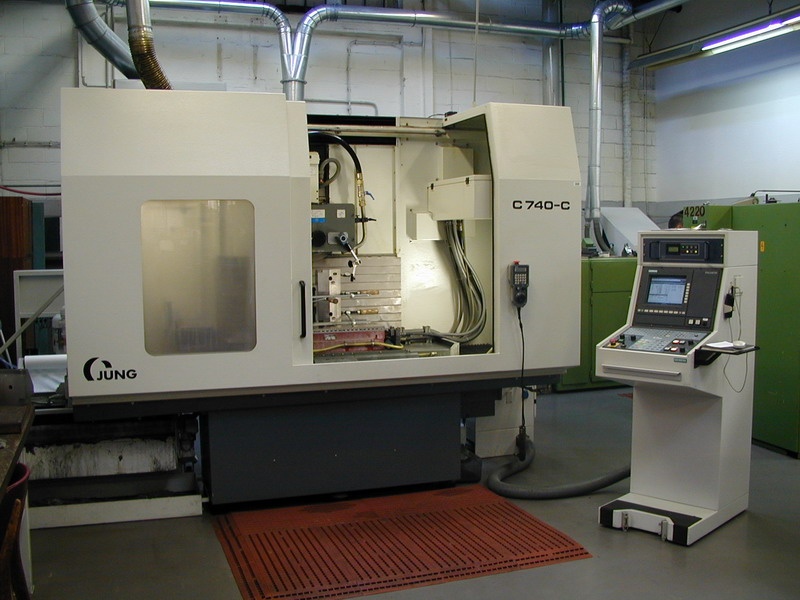

Grinding Machine - CNC |
| Model |
JUNG C 740C |
| Manufacturer |
JUNG |
| Year of Manufacture |
1999 |
|
|
|
Specifications - Grinding Machine
| Working area (mm) |
880 x 450 x 430 |
| Table size (mm) |
800 x 430 |
| Magnet size (mm) |
700 x 400 |
| Magnet capacity (kg) |
800 |
| Grinding wheel |
Diameter 400 mm
Width 25 - 100 mm
Radial wear 95 mm |
| Grinding spindle |
Power 15 kW
Permissible circumferential speed 35m/s
Permissible taper 1:10 |
| Machine coordinates |
X –os ... Feed rate: 1000 – 40.000 mm/min
Y –os ... Feed rate: 0.1 – 1000 mm/min
Z –os ... Feed rate: 0.1 – 1000 mm/min |
Other Characteristics
Controller: SIEMENS 840, machine enables grinding of contour which can be imported by means of DXF translator, grinding wheel which follows the contour can also be prepared. |
