| Type |

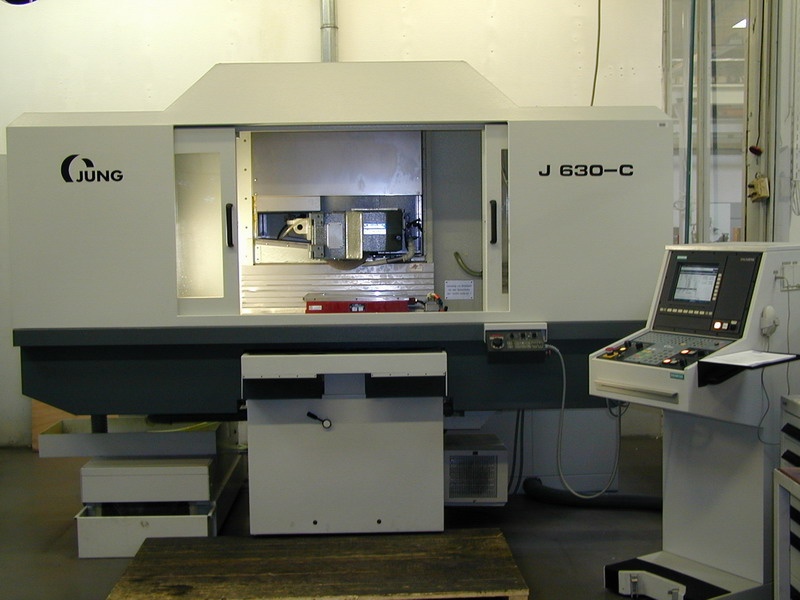

Grinding Machine - CNC |
| Model |
JUNG J 630C |
| Manufacturer |
JUNG |
| Year of Manufacture |
2000 |
|
|
|
Specifications - Grinding Machine
| Working area (mm) |
600 x 305 (height 366 mm) |
| Table size (mm) |
600 x 250 |
| Magnet size (mm) |
600 x 250 |
| Magnet capacity (kg) |
130 |
| Grinding wheel |
Diameter 300 mm
Width 25/30/50 mm
Radial wear 45 mm |
| Grinding spindle |
Power 10 kW
Permissible circumferential speed 35m/s
Permissible taper 1:10 |
| Machine coordinates |
X –os … Feed rate: 1000 – 24.000 mm/min
Y –os … Feed rate: 0.1 – 2000 mm/min
Z –os … Feed rate: 0.1 – 2000 mm/min |
Other Characteristics
Controller: SIEMENS, machine enables grinding of contour which can be imported by means of DXF translator, grinding wheel which follows the contour can also be prepared. |
