| Type |

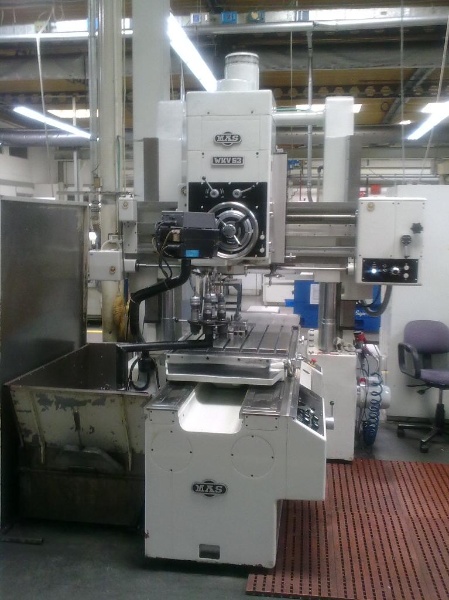

Coordinate Drilling Machine |
| Model |
WKW63 |
| Manufacturer |
MAS |
| Year of Manufacture |
1973 |
|
|
|
Specifications - Coordinate Drilling Machine
| Working area (mm) |
630 x 900 x 850 |
| Motor power (kW) |
8 |
| Spindle speed (min-1) |
22 - 2000 |
| Feed rate (mm/rev.) |
23 - 230 ... stroke
2300 ... high speed stroke |
| Table load capacity (kg) |
600 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.02 mm, read-out: digital, barrel diameter: 120 mm, stroke: 200 mm, turning from diameter 12 H7 x 40 mm, to depth 70 mm from diameters larger than 23 mm, max. turning to diameter 130 mm, clamping on table or vice. |
