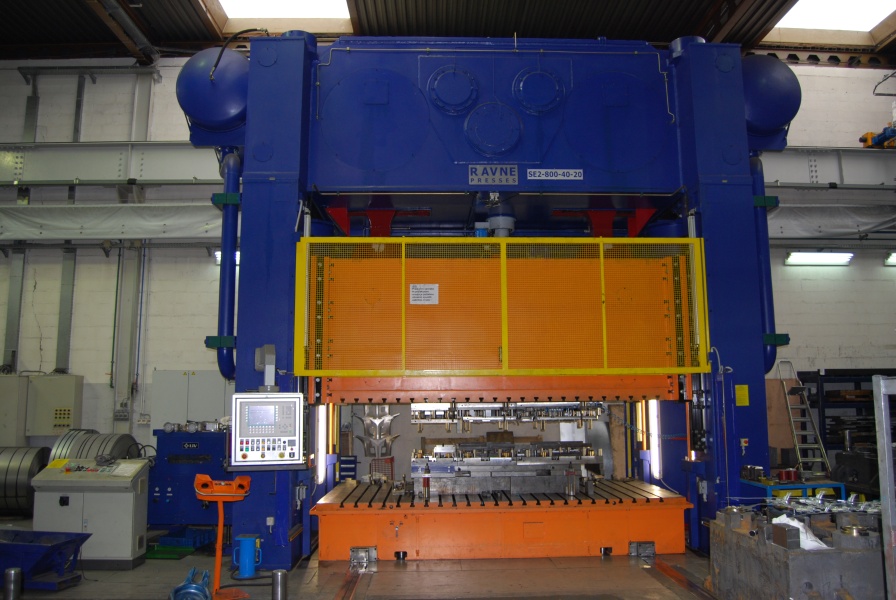

RAVNE PRESSES 8000 kN
| Type |
HYDRAULIC PRESS |
| Model |
RAVNE SE2 - 800 |
| Manufacturer |
LITOSTROJ RAVNE |
|
|
|
Machine data
| Compression force 13 mm before LDP |
max. 8000 kN |
| Compression force 100 mm before LDP |
max. 3500 kN |
Press stoke |
100 - 400 mm |
| Adjustment of slide |
0 - 400 mm |
| Installation height (stroke 400mm, Adjustment up) |
900 mm |
| Installation height (stroke 100 mm, Adjustment up) |
1050 mm |
| Installation height (stroke down, Adjustment down) |
500 mm |
| Number of strokes |
12 - 40 min-1 |
| Size of the table |
4000 x 2000 mm |
| Dimension of the slide |
4000 x 2000 mm |
| Total upper tooling weight |
max 15 t |
Straightening feeder
| Material thickness |
0,5 - 4 mm |
| Material width |
250 - 1000 mm |
| Feed length |
0 - 9999 mm |
| Feeder rate |
max. 30 m/min |
| Coil feed height (from table) |
200 - 450 mm |
| Coil weight |
max. 6 t |
| The inner diameter of the coil |
450 - 520 mm |
| Max. outer diameter of the coil |
max. 1500 mm |
Pull-out table
|
|
