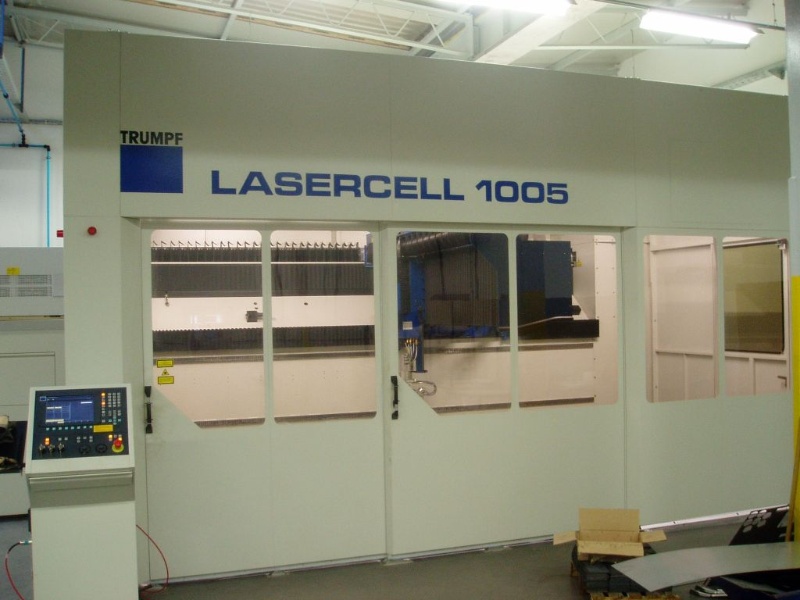

LASERCELL 1005

Type	Laser
Model	LASERCELL 1005
Manufacturer	TRUMPF
Year of Manufacture	2007

Specifications - Laser

Table size (mm)	X 3000; Y 1500; Z 750
Laser power ( TRUFLOW ) ( W )	2700
Laser head: 1. 5 col 2. 7.5 col

Max. material thickness:

Material	Gas	Max. thickness
Conventional steel	Oxygen	15 mm
Stainless stell	Nitrogen	6 mm
Aluminium	Nitrogen	4 mm

Cutting speed ( m/min )

Material	Gas	Max. speed
Conventional steel	Oxygen	8.2
Stainless stell	Nitrogen	9.2
Aluminium	Nitrogen	10.2

*.....applies to material thickness 1mm

Contact:

Andrej Verhovnik, vente
Tel: 038992166
GSM: 0038631887568
e-mail: info.laser@gorenje-orodjarna.si
