| Type |

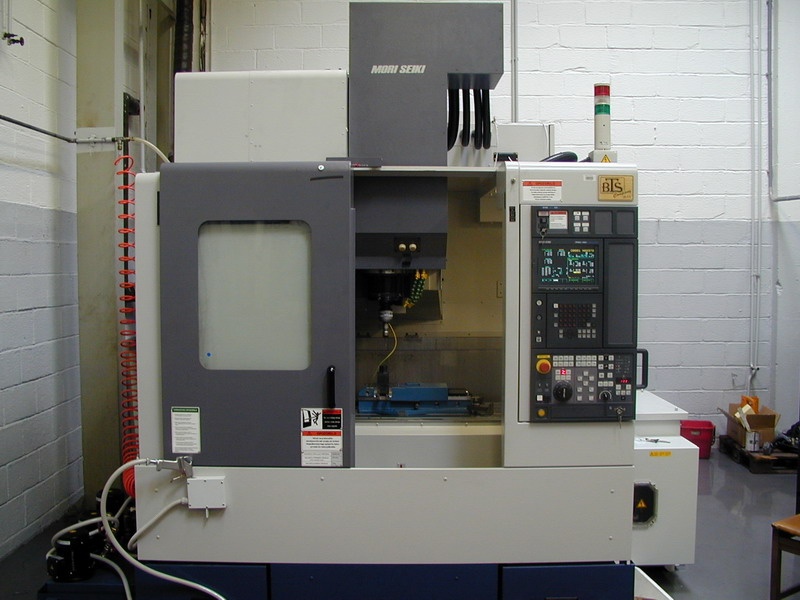

3-axis CNC Machine |
| Model |
SV-400 |
| Manufacturer |
MORI SEIKI |
| Year of Manufacture |
2000 |
|
|
|
Specifications - CNC Vertical Milling Machine
| Working area (mm) |
600 x 430 x 460 |
| Motor power (kW) |
22 (18.5) |
| Spindle speed (min-1) |
100 – 20.000 |
| Feed rate (mm/min) |
1 – 16.000 ... stroke |
| |
32.000 ... high speed stroke |
| Table load capacity (kg) |
500 |
| Controller |
Fanuc |
Other Characteristics
HSC milling operation (3-axis CNC machine)
Torque 117.7/98.1 Nm at 900 min-1, tool shank BT40, 30 tool magazine for automatic tool change, positioning accuracy +/- 0.005, repeatability accuracy +/- 0.001; 4th axis programmable, 5th axis mechanically operated. |
