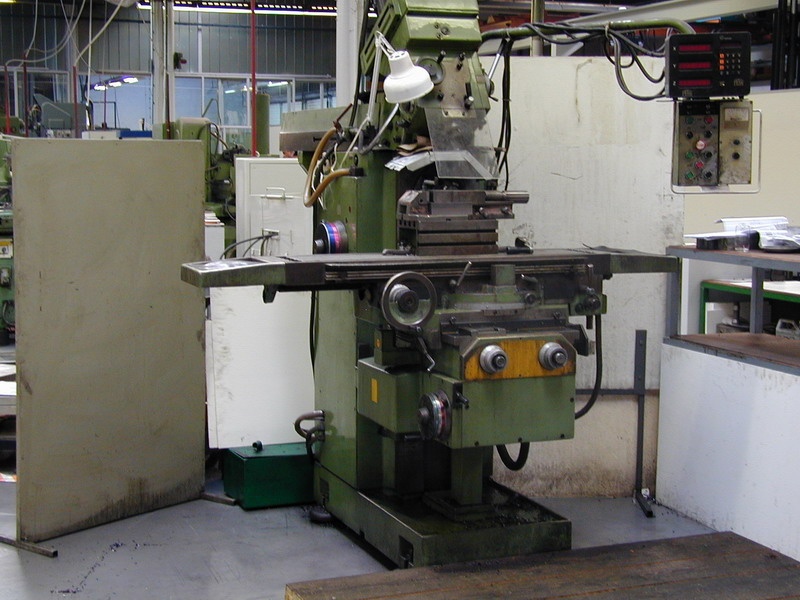

| Type |
Milling Machine |
| Model |
GUK – 1N |
| Manufacturer |
PRVOMAJSKA |
| Year of Manufacture |
1977 |
|
|
|
Specifications – Horizontal - Vertical Milling Machine
| Working area (mm) |
900 x 220 x 200 |
| Motor power (kW) |
4 |
| Spindle speed (min-1) |
40 - 2000 |
| Feed rate (mm/min) |
12,5 - 1000 |
| Table load capacity (kg) |
200 |
| Controller |
/ |
Other Characteristics
Accuracy: 0.03 mm, read-out: digital, clamping in vice up to 200 mm, inclination of vertical head with tool in two directions, equipped with dividing head and rotary table. |
